Tip : How do I print Serial Patch Panel Labels with the Rhino PRO 5000?
Detailed Description

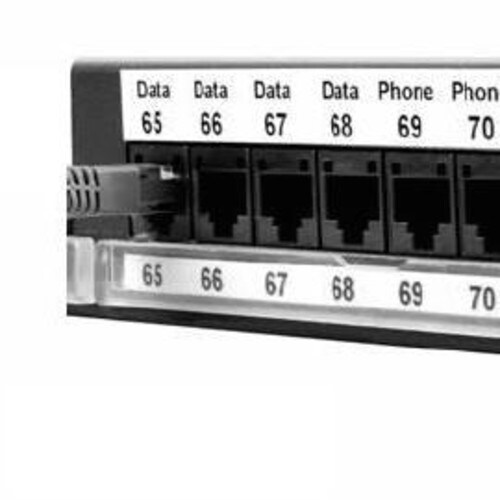

Printing Serial Patch Panel Labels with the RhinoPRO 5000. How can I print a serial patch panel label like the one depicted below: First, ensure that you are using a 3/4" (19mm) tape and that the font size is set to small.
Setting the Font Size to Small
- Power on the RhinoPRO 5000.
- Press the Size key.
- Use the Navigation key (the Navigation key is the circular key with the 4 arrows) to select S and press the Enter key.
Printing the Data Portion of the Serial Patch Panel Label
- Type Data on the first line and press the Enter key.
- Press the Space key, type 65, and press the Space key once more.
- Press the Serial key and press the 4 key.
- Press Enter.
Printing the Phone Portion of the Serial Patch Panel Label
- Type Phone on the first line and press the Enter key.
- Press the Space key, type 69 and press the Space key once more.
- Press the Serial key and press the 4 key.
- Press Enter.
Printing the Numeric Serial Patch Panel Label
- Press the Space key, type 65 and press the Space key once more.
- Press the Serial key and press the 8 key.
- Press Enter.
The Basics
Printing Serial Patch Panel Labels with the Rhino PRO 5000 is simple, here's how
